Processador:
Suporta AM4 socket 3rd Gen AMD Ryzen™ e o futuro AMD Ryzen™
Digi Power design
6 Power Phase design
Chipset:
AMD B550
Memória RAM:
2 x DIMM socket suporta até 64 GB
AMD Ryzen series CPUs (Matisse)
Suporta DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered
AMD Ryzen series APUs
Suporta DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered
Suporta Dual Channel
Suporta Extreme Memory Profile (XMP)
15μ Gold Contact in DIMM Slots
Slots de Expansão:
AMD Ryzen series CPUs (Matisse)
1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)
AMD Ryzen series APUs
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
1 x PCI Express 3.0 x1 Slot
Armazenamento:
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
LAN:
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Suporta Wake-On-LAN
Suporta Lightning/ESD Protection
Suporta Energy Efficient Ethernet 802.3az
Suporta PXE
Áudio:
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Conectores I/O:
1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

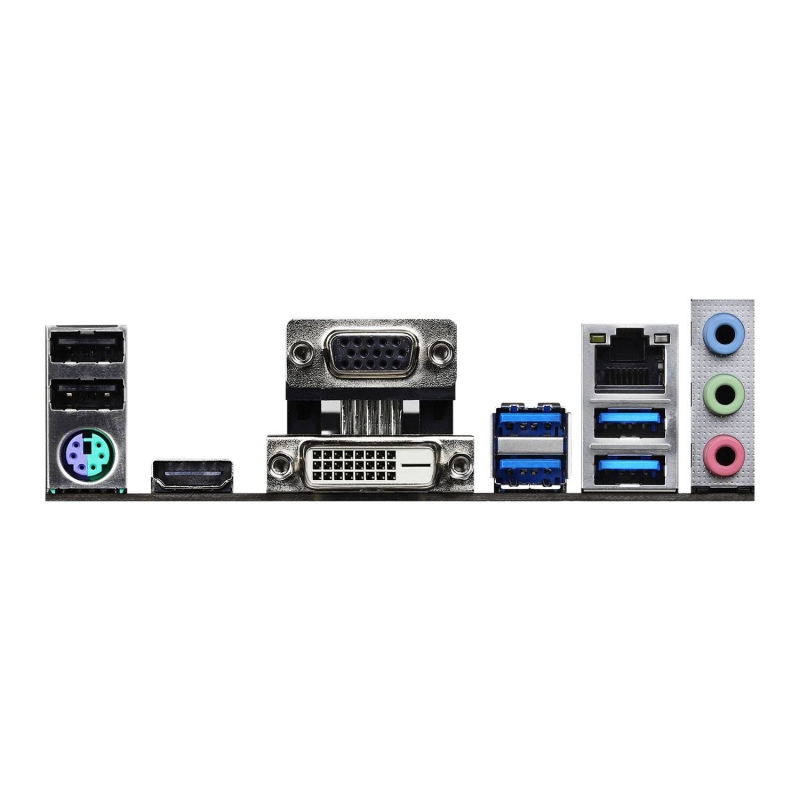

Portas Painel Traseiro:
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Dimensões:
Formato Micro ATX , 23.0 cm x 20.1 cm
