Especificações:
Processador:
Intel® Socket LGA1700 para processadores Intel® Core ™ de 12ª geração, Pentium® Gold e Celeron®
Suporta Tecnologia Intel® Turbo Boost 2.0 e Tecnologia Intel® Turbo Boost Max 3.0
Chipset: Intel® B660
Memória RAM:
4 x DIMM, Max. 128GB, DDR4 5333(OC) a 2133 MHz Non-ECC, Un-buffered memory
Arquitetura de memória Dual Channel
Suporta Intel® Extreme Memory Profile (XMP)
OptiMem
Gráficos:
1x HDMI
1x USB Type-C (suporta DisplayPort)
1x DisplayPort 1.4
Slots de Expansão:
Processadores Intel® 12ª Geração:
1x PCIe 5.0/4.0/3.0 x16 slot
Intel® B660 Chipset
1x PCIe 3.0 x16 slot (suporta modo x4)
1x PCIe 3.0 x1 slot
Armazenamento:
Suporta 3x M.2 slots e 4x portas SATA 6Gb/s
Processadores Intel® 12ª Geração
M.2_1 slot (Key M), type 2242/2260/2280/22110
Intel® B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4x Portas SATA 6Gb/s
Rede:
1x Realtek 2.5Gb Ethernet
1x Intel® 1Gb Ethernet
ASUS LANGuard
USB:
Rear USB (Total 9 ports)
1x USB 3.2 Gen 2 Type-C® port (shared with DisplayPort graphic output)
4x USB 3.2 Gen 1 ports (4 x Type-A)
4x USB 2.0 ports (6 x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 2x2 connector (supports USB Type-C® with 60W PD/QC4+)
1x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Suporta Jack-detection, Multi-streaming, Front Panel Jack-retasking
Suporta audio até 24-Bit/192 kHz

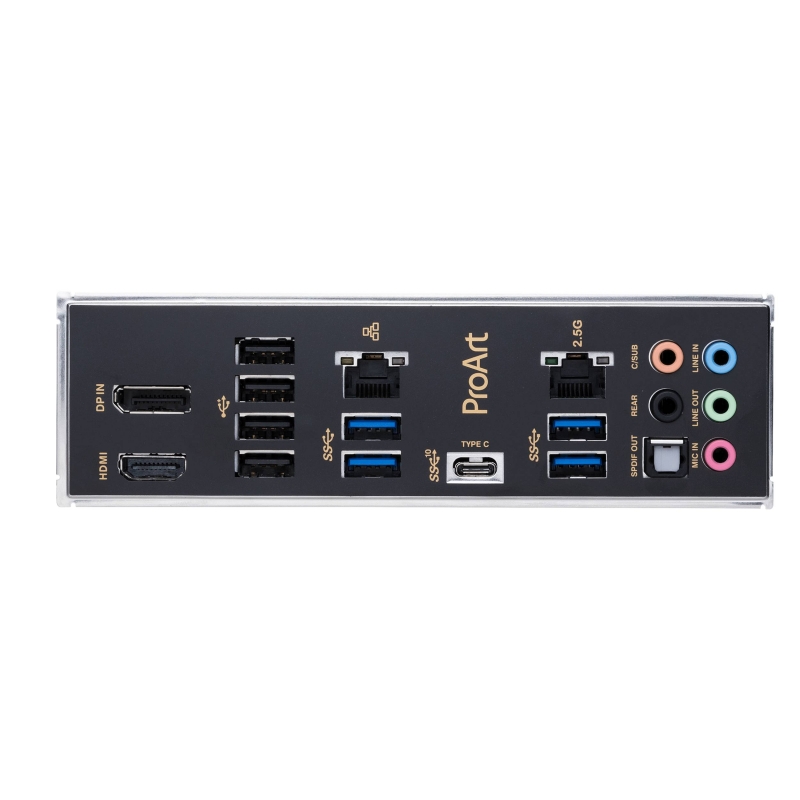

Portas I/O Painel Traseiro:
1 x USB Type-C® port supports USB 3.2 Gen2 and DisplayPort output
4 x USB 3.2 Gen 1 ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Dimensões: Formato ATX, 30.5 cm x 24.4 cm
