Processador:
Suporta Intel® Socket 1200 10th Gen Intel® Core™, Pentium® Gold e Celeron®
Suporta Intel® 14 nm CPU
Suporta Intel® Turbo Boost Technology 2.0 e Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B460
Memória RAM:
Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
Slots de Expansão:
Processador Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Processador Intel® B460 Chipset
2 x PCIe 3.0/2.0 x1
Armazenamento:
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Suporta Raid 0, 1, 5, 10
Suporta Tecnologia Intel® Rapid Storage
Intel® Optane™ Memory Ready
LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Áudio:
Realtek® ALC887 7.1-Channel High Definition Audio CODEC
Suporta Jack-detection, up to 24-Bit/192kHz playback
Portas USB:
Traseiras ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Frontais ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)
Conectores I/O:
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x SPI TPM header
1 x LPT header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

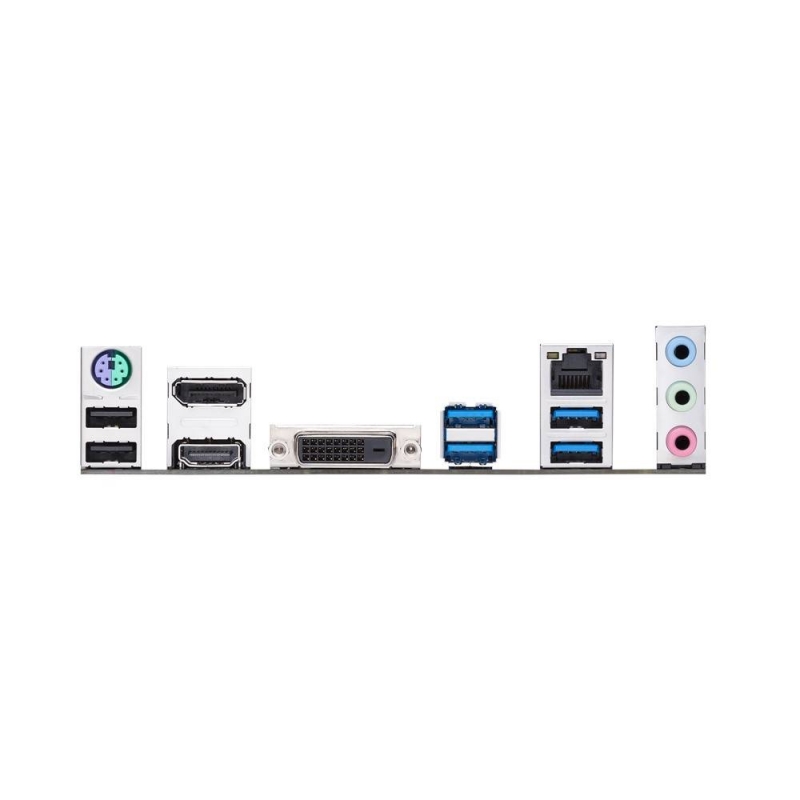

Portas Painel Traseiro:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Dimensões: Formato mATX , 24.4 cm x 23.4 cm
